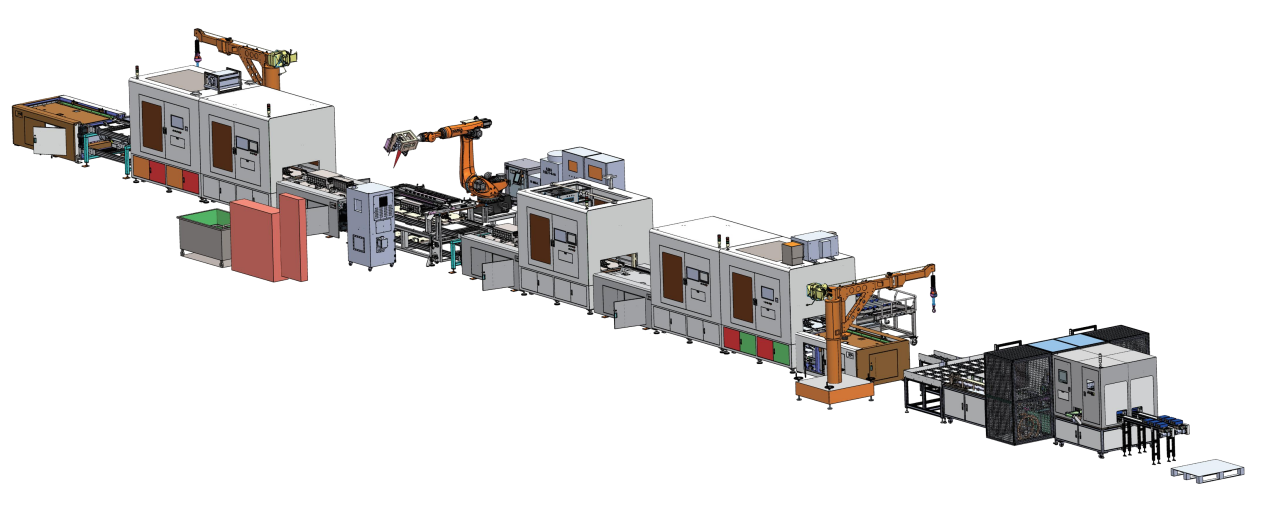

This non-standard customized production line is mainly used for the sorting, welding, testing and assembly of energy storage battery cell module PACK. This line consists of the following stations: manual battery cell loading, automatic battery cell sorting by scanning code, manual battery cell adhesive application, robot automatic pr-stacking, manual steel band installation, automatic module transfer and online loading, automatic insulation and withstand voltage test before module welding, automatic CCD terminal post addressing, automatic terminal laser cleaning, manual bus-bar placement, automatic laser welding, automatic insulation and withstand voltage test after welding, post-weld 2D camera inspection, gantry crane line transfer, manual module PACK assembly and testing, and overhead crane unloading.
Product Advantage
Robot welding.
NG self-discharge.
Post-weld visual inspection.
Technical Parameters
Production line efficiency | 12PPM |
External dimensions | L65m×W5m×H3m |
Compatibility range | Commonly available battery cells on the market (such as 102AH, 280AH, 314AH and other mainstream battery cells) |
Application
This non-standard customized production line is mainly used for the sorting, welding, testing and assembly of energy storage battery cell module PACK.
