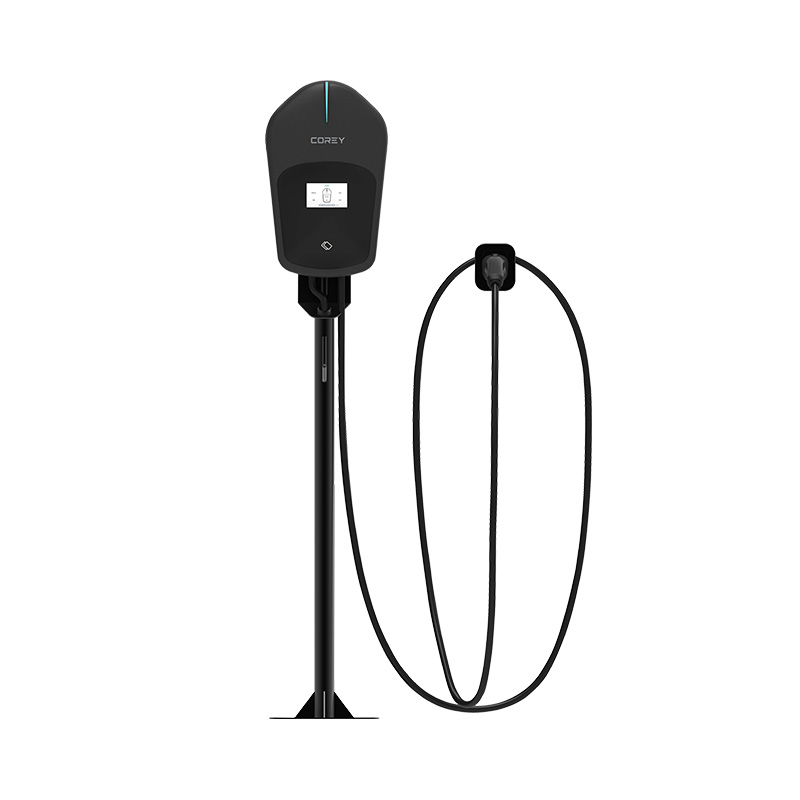

COREY ’s EV charger include main control board, charging plug and housing.The product is equipped with display screen or indicator light, concise appearance, practical and easy for operation. It has multiple protection functions and excellent performance.
Product Advantage
High safety: Safety factors have been considered from hardware to software, and there are backup safety measures such as overload protection, short circuit protection, leakage protection to ensure the reliability and safety of the equipment.
High degree of intelligence: Remote management and automated operations can be achieved through Internet connection.
Energy saving and environmental protection: Using energy-saving components and technologies to reduce high efficiency, and also consider how to better utilize renewable energy.
Technical Parameters
| Model | COREY SP 07 - 201W | COREY SP 07 - 202W |
| Rated Power [kW] | 7 | |
| Rated Voltage [Vac] | 230 | |
| Rated Current [A] | 32 | |
| Communication mode | Bluetooth + WiFi + Swiping card | Bluetooth + WiFi + Swiping card |
| Display mode | Screen + Indicator light | Indicator light |
| Operating frequency [Hz] | 50/60 | 50/60 |
| Input mode | Single phase | |
| IP Rating | IP65 | |
| Environmental requirement | Altitude: ≤2000m, Relative humidity: 5% - 95%, Non - condensing, No condensation | |
| Operating ambient temperature: -30 - +55°C, Storage ambient temperature: -40 - +85°C | ||
| Installation | Stand / Wall mounted | |
| Certification | EN IEC 61851 - 21 - 2:2020, EN 301 489 - 1 V2.2.3, EN 301 489 - 3 V2.3.2, EN 301 489 - 17 V3.2.4 | |
| EN 300 328 V2.2.2, EN 300 330 V2.1.1, EN IEC 62311:2020 | ||
| Model | COREY TP 11 - 202W | COREY TP 11 - 203W | COREY TP 22 - 202W | COREY TP 22 - 203W |
| Rated Power [kW] | 11 | 22 | ||
| Rated Voltage [Vac] | 380 | 380 | ||
| Rated Current [A] | 16 | 32 | ||
| Communication mode | Bluetooth + WiFi + Swiping card | Bluetooth + WiFi + Swiping card | ||
| Display mode | Screen + Indicator light | Indicator light | Screen + Indicator light | Indicator light |
| Operating frequency [Hz] | 50/60 | 50/60 | 50/60 | 50/60 |
| Input mode | Three phase | |||
| IP Rating | IP65 | |||
| Environmental requirement | Altitude: ≤2000m, Relative humidity: 5% - 95%, Non - condensing, No condensation | |||
| Operating ambient temperature: -30 - +55°C, Storage ambient temperature: -40 - +85°C | ||||
| Installation | Stand / Wall mounted | |||
| Certification | EN IEC 61851 - 21 - 2:2021, EN 301 489 - 1 V2.2.3, EN 301 489 - 3 V2.3.2, EN 301 489 - 17 V3.2.4 | |||
| EN 300 328 V2.2.2, EN 300 330 V2.1.1, EN IEC 62311:2020 | ||||
Application
Highway service area, city public parking areas, residential areas and office spaces, tourist attractions
